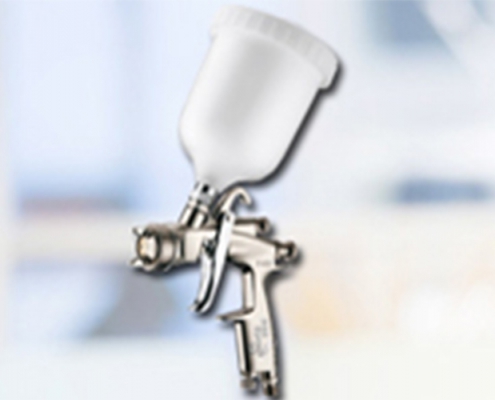

Gravity Feed Spray Guns
Gravity feed spray guns are commonly used for their simplicity and efficiency in applying coatings and paints. In these guns, the paint or coating material is supplied to the spray nozzle by gravity from a container mounted above the gun. This design allows for a direct and smooth flow of material, reducing the chances of clogging and providing better control over the spray pattern. Gravity feed guns are particularly advantageous for smaller, detailed work where precision is important, as they can achieve a fine and consistent finish with less effort compared to other feeding methods.
We are a Manufacturer, Supplier, Exporter, and Services of Gravity Feed Spray Guns and our setup is situated in Chennai, Tamil Nadu.
Applications:-
Automotive, WoodWork, Metal, Furniture, medium viscosity. Large work area.
Specification:-
Model
|
Type
of Feed |
Nozzle
orifice Ømm (in) |
Air cap
|
Atomizing Air
pressure Mpa (bar) |
Fluid
Output ml/min |
Air
consumption I/min (cfm) |
Pattern
Width mm (in) |
Weight
g(lbs) |
X-402-12G
|
Central
gravity |
1.2 (0.047)
|
LV2
|
0.29 (3.0)
|
160
|
370 (13.1)
|
250 (9.8)
|
370 (0.81)
|
X-402-13G
|
1.3 (0.051)
|
200
|
300 (11.8)
|
|||||
X-402-14G
|
1.4 (0.055)
|
265
|
320 (12.6)
|
|||||
X-402-16G
|
1.6 (0.063)
|
310
|
340 (13.4)
|
|||||
X-402-18G
|
1.8 (0.071)
|
LV1
|
400
|
380 (13.4)
|
320 (12.6)
|
|||
X-402-25G
|
2.5 (0.098)
|
W1
|
580
|
360 (12.7)
|
340 (13.4)
|
|||
HVLP
Model |
Type
of Feed |
Nozzle
orifice Ømm (in) |
Air cap
|
Atomizing Air
pressure Mpa (bar) |
Fluid
Output ml/min |
Air
consumption I/min (cfm) |
Pattern
Width mm (in) |
Weight
g(lbs) |

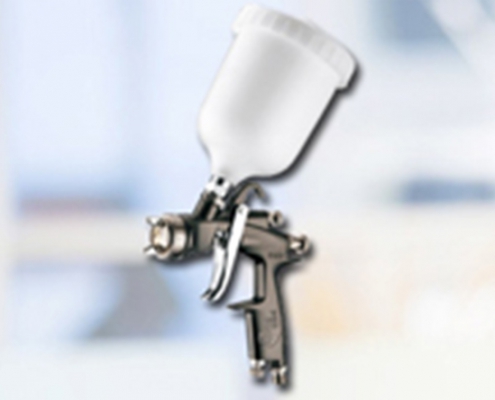

X-402L-14G
|
Central
gravity |
1.4 (0.055)
|
LV4
|
0.11 (1.1)
|
130
|
270 (9.5)
|
290 (11.4)
|
370 (0.81)
|
X-402L-16G
|
1.6 (0.063)
|
150
|
300 (11.8)
|
